#include <Distributor.h>

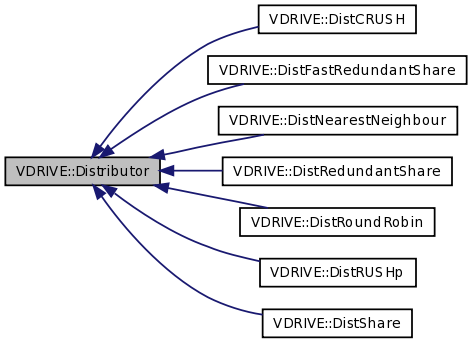

Inheritance diagram for VDRIVE::Distributor:

Public Member Functions
virtual	~Distributor ()
virtual std::list< Disk * > *	placeExtent (int64_t virtualVolumeId, int64_t position)=0
virtual void	setConfiguration (std::list< Disk * > *disks, int64_t extentsize, int32_t copies)=0
virtual void	setClusters (std::list< std::list< Disk * > * > clusters, std::list< uint32_t > weights)
virtual void	setDisks (std::list< Disk * > *disks)=0
virtual uint8_t *	getBaseMessage () const
virtual void	setBaseMessage (uint8_t *baseMessage)
uint64_t	myMTRand (std::string *data) const
uint64_t	myRand (std::string *data) const
uint64_t	myLC (std::string *data) const
uint64_t	mySHA1 (std::string *data) const
uint64_t	gcrypt (std::string *data) const
double	hashFunction (std::string *data) const
uint64_t	hashFunctionInt64 (std::string *data) const
virtual std::list< Disk * > *	getDisks () const =0
virtual int64_t	getExtentsize () const =0
virtual int32_t	getCopies () const =0
virtual xercesc::DOMElement *	toXML (xercesc::DOMDocument *doc) const =0
void	save (std::string filename) const
uint16_t	getNumThreads () const
void	setNumThreads (uint16_t numThreads)
void	useInternalHashAlgorithm (int algorithm)
bool	useGCryptHashAlgorithm (int algorithm)
void	usedHashAlgorithm (bool internal, int gcryptalgorithm, int *intalgorithm) const
Static Public Member Functions
static Distributor *	createDistributor (int32_t distributor, int argc, char **argv)
static Distributor *	loadDistributor (std::string filename)
Public Attributes
uint64_t	a
uint64_t	b
Static Public Attributes
static const int32_t	SHARE = 1
static const int32_t	NEAREST_NEIGHBOUR = 2
static const int32_t	REDUNDANT_SHARE = 3
static const int32_t	REDUNDANT_SHARE_K = 4
static const int32_t	ROUND_ROBIN = 5
static const int32_t	RUSH_P = 6
static const int32_t	CRUSH = 7
static const int	HASH_SHA1 = 1
static const int	HASH_XOR = 2
static const int	HASH_RAND = 3
static const int	HASH_MT = 4
Protected Member Functions
	Distributor ()

Detailed Description

A Distributor can be used to Distribute Extents of a Virtual Volume over a number of Disks. This abstract class builds the API of all implemented Distribution Algorithms.

Sascha Effert <fermat@uni-paderborn.de>

Constructor & Destructor Documentation

Distributor::~Distributor ( ) [virtual]

Destructor

Distributor::Distributor ( ) [protected]

Creates a new Distributor.

Member Function Documentation

Distributor * Distributor::createDistributor	(	int32_t	distributor,
		int	argc,
		char **	argv
	)		`[static]`

Create a new Distributor of the given kind. Using this factory method a using library has not to know about the implementation classes.

Parameters:

distributor	The kind of distributor
argc	number of arguments passed to the distributor
argv	arguments passed to the distributor

Returns:: A new Distributor object

uint64_t Distributor::gcrypt ( std::string * data ) const

Creates a Hashvalue using the libgcrypt. The used hash function is specified by gcryptHashAlgorithm.

Parameters:

data	message to be used as seed

Returns:: a hash values

uint8_t * Distributor::getBaseMessage ( ) const [virtual]

get (a copy of) the BaseMessage used by the Hashfunctions.

Will return a 64-Byte-Array containing a copy of the base-Values used to xor Messages again to create Hashes from. The array belongs to the caller of this method and can be modified and must be deleted by him (using delete[]).

Returns:: a copy of the BaseMessage used by the Hashfunctions.

virtual int32_t VDRIVE::Distributor::getCopies ( ) const [pure virtual]

Get the number of copies of each extents to be placed as passed to setConfiguration.

Returns:: the number of copies of each extents to be placed

Implemented in VDRIVE::DistFastRedundantShare, VDRIVE::DistNearestNeighbour, VDRIVE::DistRedundantShare, VDRIVE::DistRoundRobin, VDRIVE::DistRUSHp, and VDRIVE::DistShare.

virtual std::list<Disk*>* VDRIVE::Distributor::getDisks ( ) const [pure virtual]

Get the Disks used by this object as passed to setDisks or setConfiguration.

The returned list of Disk object as the Disk objects itself belong the caller of this method. A Distributor creates copy of his Disk objects which are send back in this list. Therefore the caller has to delete the list and the Disk objects in the list if it is no more used.

Returns:: The disks used by this object

Implemented in VDRIVE::DistFastRedundantShare, VDRIVE::DistNearestNeighbour, VDRIVE::DistRedundantShare, VDRIVE::DistRoundRobin, VDRIVE::DistRUSHp, and VDRIVE::DistShare.

virtual int64_t VDRIVE::Distributor::getExtentsize ( ) const [pure virtual]

Get the Size of the Extents passed to this object as passed to setConfiguration.

Returns:: the Size of the Extents passed to this object.

Implemented in VDRIVE::DistFastRedundantShare, VDRIVE::DistNearestNeighbour, VDRIVE::DistRedundantShare, VDRIVE::DistRoundRobin, VDRIVE::DistRUSHp, and VDRIVE::DistShare.

uint16_t VDRIVE::Distributor::getNumThreads ( ) const [inline]

get the number of Threads that may be used for Initialization (setDisks)

Returns:: the number of Threads that may be used for Initialization

double Distributor::hashFunction ( std::string * data ) const

This Hashfunction delivers for a given Text a pseudo randomized value between 0 and 1. We used SHA to calculate this value.

Parameters:

data	message to be used as seed

Returns:: a hash values

uint64_t Distributor::hashFunctionInt64 ( std::string * data ) const

This Hashfunction delivers for a given Text a pseudo randomized int64_t value (can be negative).

Parameters:

data	message to be used as seed

Returns:: a hash value

Distributor * Distributor::loadDistributor ( std::string filename ) [static]

load a configured Distributor from a file.

Parameters:

filename The name of the file containing the distributor

Returns:: the Distributor

uint64_t Distributor::myLC ( std::string * data ) const

Creates a Hashvalue by using the a linear congruention. Therefore a 64-Bit version of the given message is created which is used as base value. The hash is then computed by

$h(x) = (a\cdot x + b) mod 2^{64}$

a and b are initialized in the constructor as a = 10000000000000000051 and b = 13.

Parameters:

data	message to be used as seed

Returns:: a hash values

uint64_t Distributor::myMTRand ( std::string * data ) const

Creates a Hashvalue by using the bit shift operation of Mersenne Twister. Therefore a 32-Bit version of the given message is created which is used as seed. The algorithm computes the first two randomized values which mersenne twister would give us and combines them to a 64 bit randomized value.

Parameters:

data	message to be used as seed

Returns:: a hash values

uint64_t Distributor::myRand ( std::string * data ) const

Creates a Hashvalue by using the rand-function of stdlib. Therefore a 32-Bit version of the given message is created which is used as seed. The algorithm computes the first two randomized values by using rand() and combines them to a 64 bit randomized value.

Parameters:

data	message to be used as seed

Returns:: a hash values

uint64_t Distributor::mySHA1 ( std::string * data ) const

Creates a Hashvalue by using SHA1. Therefore a 64-Byte version of the given message is created which is encrypted by SHA1. The first 8 Byte of the Digest are used as result.

Parameters:

data	message to be used as seed

Returns:: a hash values

virtual std::list<Disk> VDRIVE::Distributor::placeExtent	(	int64_t	virtualVolumeId,
		int64_t	position
	)		`[pure virtual]`

Compute the Disks to be used to place the Extent at position at the given virtualVolumeID. This method has to be implemented by the subclasses of Distributor.

The returned list of Disk object as the Disk objects itself belong the caller of this method. A Distributor creates copy of his Disk objects which are send back in this list. Therefore the caller has to delete the list and the Disk objects in the list if it is no more used.

Parameters:

virtualVolumeId	A ID referencing the virtual volume the Extent belongs to (therefore several virtual Volumes can use the same disks)
position	The position of the Extent on the virtual Volume

Returns:: The Disks the Extent has to be placed on. All returned Objects have to be deleted by caller of this method.

Implemented in VDRIVE::DistFastRedundantShare, VDRIVE::DistNearestNeighbour, VDRIVE::DistRedundantShare, VDRIVE::DistRoundRobin, VDRIVE::DistRUSHp, and VDRIVE::DistShare.

void Distributor::save ( std::string filename ) const

save this (configured) Distributor to a file, so it can be loaded later.

Parameters:

filename The name of the file the distributor shall be saved in.

void Distributor::setBaseMessage ( uint8_t * baseMessage ) [virtual]

Set the new BaseMessage as described at getBaseMessage. This method will create a copy of this message, so the responsibility for deleting stays at the caller of this method.

Parameters:

baseMessage The new base Message

See also:: getBaseMessage

Reimplemented in VDRIVE::DistFastRedundantShare, and VDRIVE::DistShare.

virtual void VDRIVE::Distributor::setClusters	(	std::list< std::list< Disk * > * > *	clusters,
		std::list< uint32_t > *	weights
	)		`[inline, virtual]`

Reimplemented in VDRIVE::DistRUSHp.

virtual void VDRIVE::Distributor::setConfiguration	(	std::list< Disk * > *	disks,
		int64_t	extentsize,
		int32_t	copies
	)		`[pure virtual]`

Set the configuration of the Distributor. This method has to be called exacly once on each Object. It initializes the object, so it can be used to place extents. This method has to be implemented by the subclasses of Distributor.

The list of Disks as the Disk objects itself belong the caller of this method. A Distributor creates copy of the Disk objects. Therefore the caller has to delete the list and the Disk objects in the list if it is no more used.

Parameters:

disks	A list with the description of the Disks to distribute data over.
extentsize	The size of each extent placed on the disk in bytes. (This can also be in any other scale, but has to be same for capacity of the Disks)
copies	The number of Disks used to place eache Extent. If a RAID is used upon the Extents this would be the stripe size.

Returns:: A list with the Disks, that shall be used

Implemented in VDRIVE::DistFastRedundantShare, VDRIVE::DistNearestNeighbour, VDRIVE::DistRedundantShare, VDRIVE::DistRoundRobin, VDRIVE::DistRUSHp, and VDRIVE::DistShare.

virtual void VDRIVE::Distributor::setDisks ( std::list< Disk * > * disks ) [pure virtual]

Change the Disks used by this Distributor.

The list of Disks as the Disk objects itself belong the caller of this method. A Distributor creates copy of the Disk objects. Therefore the caller has to delete the list and the Disk objects in the list if it is no more used.

Parameters:

disks The Disks, that now should be used.

Implemented in VDRIVE::DistFastRedundantShare, VDRIVE::DistNearestNeighbour, VDRIVE::DistRedundantShare, VDRIVE::DistRoundRobin, VDRIVE::DistRUSHp, and VDRIVE::DistShare.

void VDRIVE::Distributor::setNumThreads ( uint16_t numThreads ) [inline]

set the number of Threads that may be used for Initialization (setDisks)

Parameters:

numThreads the number of Threads that may be used for Initialization

virtual xercesc::DOMElement* VDRIVE::Distributor::toXML ( xercesc::DOMDocument * doc ) const [pure virtual]

build an XML-Version of this object

Parameters:

doc	the document needed to create new XML Elements

Returns:: a new Element containing the description of this object.

Implemented in VDRIVE::DistFastRedundantShare, VDRIVE::DistNearestNeighbour, VDRIVE::DistRedundantShare, VDRIVE::DistRoundRobin, VDRIVE::DistRUSHp, and VDRIVE::DistShare.

void VDRIVE::Distributor::usedHashAlgorithm	(	bool *	internal,
		int *	gcryptalgorithm,
		int *	intalgorithm
	)		const `[inline]`

get information about used Hashalgorithm.

Parameters:

internal	true is the internal Hash Algorithm is used, false if a libgcrypt Hash algorithm is used.
algorithm	only set if internal is false. Then it holds the algorithm used by libgrypt to create Hashes.

bool VDRIVE::Distributor::useGCryptHashAlgorithm ( int algorithm ) [inline]

Use a Hash Algorithm of the lib gcrypt to build hashes.

Parameters:

algorithm the algorithm to be used. The int represents a hash algorithm which has to exists in the used libgcrypt. For a list of known hash functions have a look at the documentation of your version of libgcrypt.

void VDRIVE::Distributor::useInternalHashAlgorithm ( int algorithm ) [inline]

use the internal Hash Algorithm to create Hashes (SHA1).

Member Data Documentation

uint64_t VDRIVE::Distributor::a

used a factor for creation of own Hash using xor. The Hash is build by result = a * message + b The value had to be set in Constructor to use a real big prime number here...

uint64_t VDRIVE::Distributor::b

used a sum for creation of own Hash using xor. The Hash is build by result = a * message + b

const int32_t VDRIVE::Distributor::CRUSH = 7 [static]

This value send to createDistributor creates an implementation of CRUSH

const int VDRIVE::Distributor::HASH_MT = 4 [static]

if we ose an own Hash function (internalHash is true, so no libgcrypt is used) than this value means we use our MT implementation.

const int VDRIVE::Distributor::HASH_RAND = 3 [static]

if we ose an own Hash function (internalHash is true, so no libgcrypt is used) than this value means we use our rand implementation.

const int VDRIVE::Distributor::HASH_SHA1 = 1 [static]

if we ose an own Hash function (internalHash is true, so no libgcrypt is used) than this value means we use our SHA1 implementation.

const int VDRIVE::Distributor::HASH_XOR = 2 [static]

if we ose an own Hash function (internalHash is true, so no libgcrypt is used) than this value means we use our linear congruent implementation.

const int32_t VDRIVE::Distributor::NEAREST_NEIGHBOUR = 2 [static]

This value send to createDistributor creates an implementation of Nearest Neighbour (Consistant Hashing)

const int32_t VDRIVE::Distributor::REDUNDANT_SHARE = 3 [static]

This value send to createDistributor creates an implementation of Redundant Share

const int32_t VDRIVE::Distributor::REDUNDANT_SHARE_K = 4 [static]

This value send to createDistributor creates an implementation of Redundant Share in the O(k) version

const int32_t VDRIVE::Distributor::ROUND_ROBIN = 5 [static]

This value send to createDistributor creates an implementation of Redundant Share

const int32_t VDRIVE::Distributor::RUSH_P = 6 [static]

This value send to createDistributor creates an implementation of RUSHp

const int32_t VDRIVE::Distributor::SHARE = 1 [static]

This value send to createDistributor creates an implementation of Share

The documentation for this class was generated from the following files:
