#include <RSCache.h>

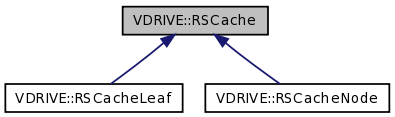

Inheritance diagram for VDRIVE::RSCache:

Public Member Functions
virtual std::pair< const int32_t, mpq_class * > *	getHighValue (int32_t *query)=0
virtual std::pair< const int32_t, mpq_class * > *	getLowValue (int32_t *query)=0
virtual void	setValue (int32_t *query, mpq_class &value)=0
virtual mpq_class *	getValue (int32_t *query)=0
virtual	~RSCache ()
Static Public Member Functions
static RSCache *	createInstance (int32_t depth)

Detailed Description

The RSCace is used for differen caching puposes during initialization of a DistRedundantShare. It is organized as a tree over the several parameters. The deepth of this tree id for every leaf depth. Each node can (and will) hold many Elements in an unorderd map, which gives an O(1) access to the next node. Therefore the RSCache has a O(depth) complexity for adding and searching elements.

To access entities in the cache the user has to pass a query to the cache. Such a query is an array of int32_t-values with the length depth.

The subclasses RSCacheLeaf and RSCacheNode will build the real tree.

Author:: Sascha Effert <fermat@uni-paderborn.de>

Constructor & Destructor Documentation

virtual VDRIVE::RSCache::~RSCache ( ) [inline, virtual]

destructor. Destroys the whole cache.

Member Function Documentation

RSCache * RSCache::createInstance ( int32_t depth ) [static]

create a new RSCache with the given depth (depth has to be greater or equal to 1).

Parameters:

depth The depth of the cache

Returns:: a new RSCache with the given depth

virtual std::pair<const int32_t, mpq_class*>* VDRIVE::RSCache::getHighValue ( int32_t * query ) [pure virtual]

get the next best value for the query out of the cache. This is a Elment where the first (depth-1) values hit and the last value is lower or equal to the given value.

Parameters:

query The query to the searched Element

Returns:: The best matching value and the position it was placed.

Implemented in VDRIVE::RSCacheLeaf, and VDRIVE::RSCacheNode.

virtual std::pair<const int32_t, mpq_class*>* VDRIVE::RSCache::getLowValue ( int32_t * query ) [pure virtual]

get the next best value for the query out of the cache. This is a Elment where the first (depth-1) values hit and the last value is higher or equal to the given value.

Parameters:

query The query to the searched Element
